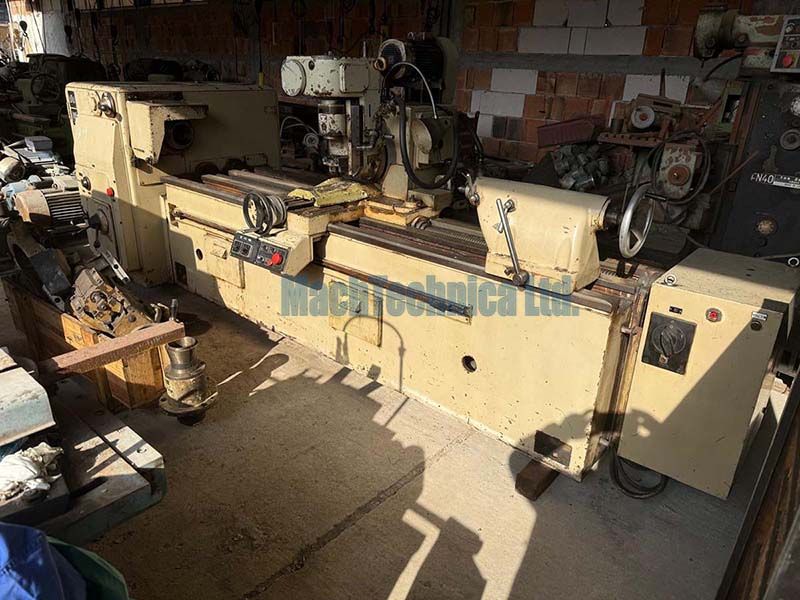

Heckert ZFWVG 250 x 2000 Thread Milling and Spline Hobbing Machine.
Max. workpiece diameter 250 mm
Workpiece diameter over bed 500 mm
Center height over bed 260 mm
Threading/hobbing length 2000 mm
Min/Max. module 2/18
Workpiece spindle bore 102 mm
Bore of the collets 100 mm
Tailstock quill stroke 100 mm
Speed 45 – 560 rpm
Lead of leadscrew 1,2 '' links / left mm
Workpiece turning speeds 0,0032-2,65 U/min
Rolling feed 0,027-5,66 mm/WU
Longitudinal hob feeds 0,3-198 mm/min
Main drive 4 kW
Feed motor 25 NM
Coolant pump 0,09 kW
Lubrication pump 0,37 kW
Total power requirement 9,5 kW
Dimensions 3700x2400x1600 mm
Total weight 5200 kg
Accessories;
-heavy duty head
-standard head
-steady rest
-flange
-change gears full set

ZFWVG 250x2000 is a rialable used Thread Miller suitable for precision machining and industrial use.
This HECKERT ZFWVG 250x2000 machine is widely known as a high-quality Thread Milling machine used in various manufacturing processes.
The ZFWVG 250x2000 Thread Miller offers excellent performance and accuracy, a popular choice for workshops and production facilities.
Also known as: ZFWVG 250x2000 HECKERT Thread Miller, ZFWVG 250x2000 Thread Milling and Spline Hobbing Machine.
This used HECKERT Thread Miller model ZFWVG 250x2000 is available for sale and inspection.
