MAZAK NEXUS 8800-II Horizontal center Featured Popular
MAZAK NEXUS 8800-II Horizontal center

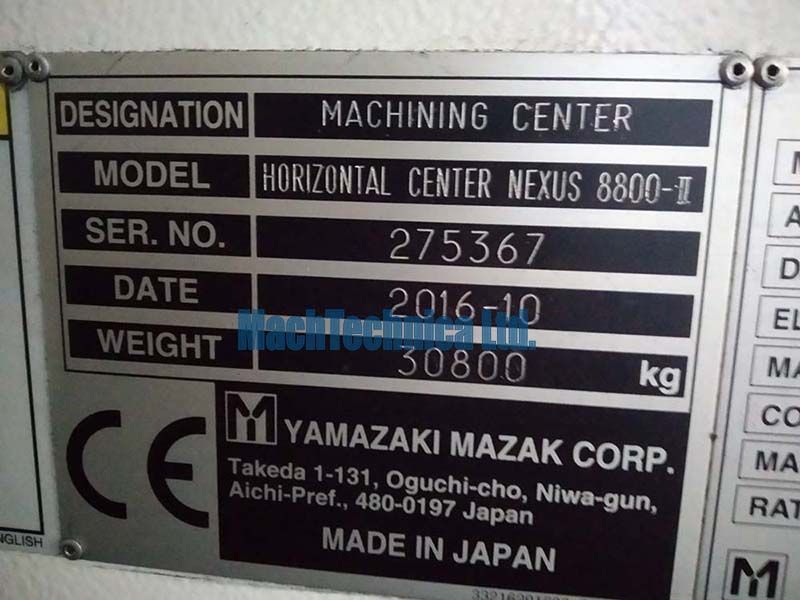

YOM 10.2016
Serial No. 275367

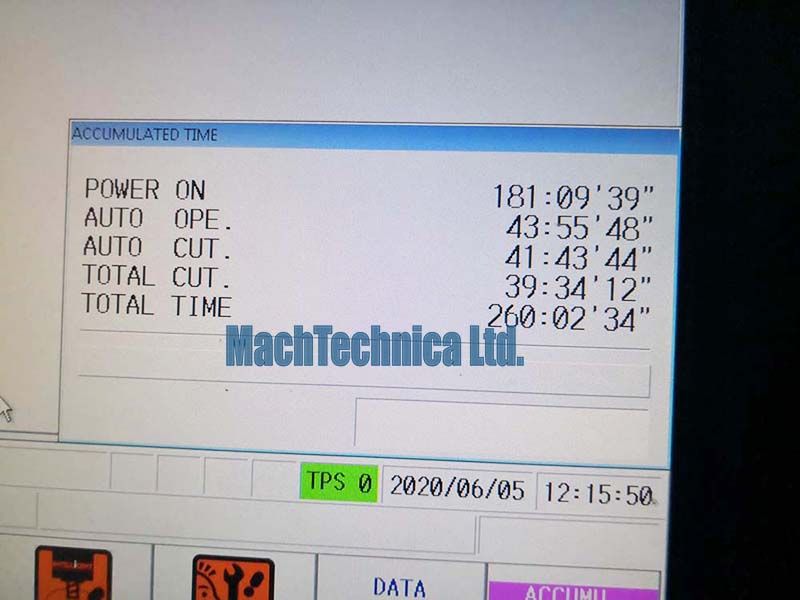

Power on- 181h, Total cut- 39h, Total time- 260h (05.06.2020)
Purchased price in 2017- about 400.000 EUR

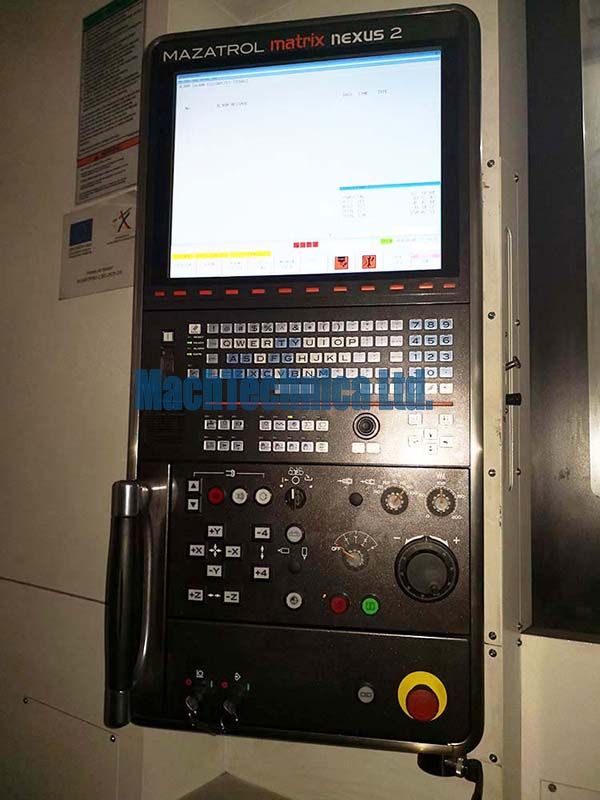

CNC - MAZATROL MATRIX NEXUS 2
CAPACITY
Maximum workpiece diameter 1450 mm
Maximum workpiece height 1450 mm
X-axis travel (column right and left) 1400 mm
Y-axis travel (spindle up and down) 1200 mm
Z-axis travel (table back and forth) 1325 mm
B ± 360°
Rapid traverse rate 60.000 mm/min
Positioning accuracy (X,Y,Z)- 0,004 mm
SPINDLE (standard)
Spindle taper hole 7/24 taper No. 50
Number of Index Positions 360,000
Spindle speed maximum 10.000 rpm
Main motor (continuous rating) 30.0 kW

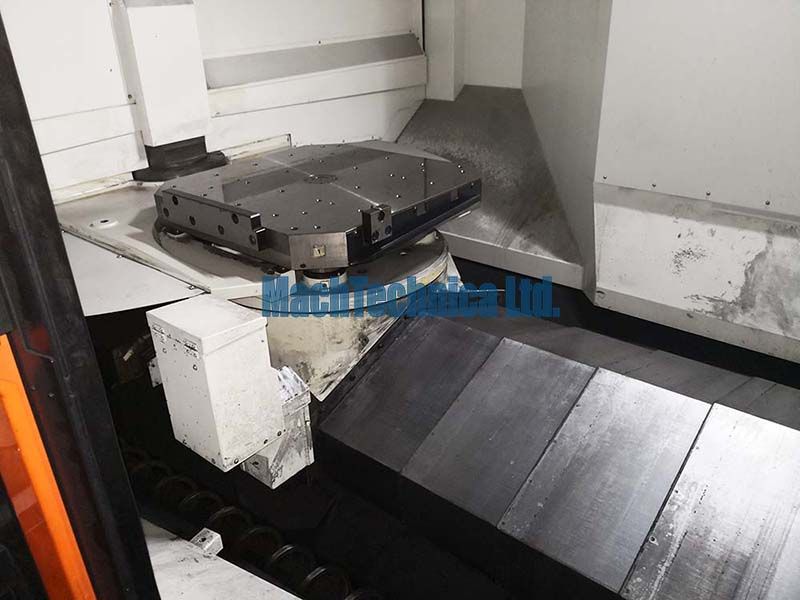

TABLE & PALLET
Pallet 800 x 800 mm
Work piece 1450mm x 1450mm
ATC TOOL MAGAZINE
No. of tool pockets (standard) 80
Weight 29 t
Videos of the machine in running- available upon request.
YOM 10.2016
Serial No. 275367
Power on- 181h, Total cut- 39h, Total time- 260h (05.06.2020)
Purchased price in 2017- about 400.000 EUR
CNC - MAZATROL MATRIX NEXUS 2
CAPACITY
Maximum workpiece diameter 1450 mm
Maximum workpiece height 1450 mm
X-axis travel (column right and left) 1400 mm
Y-axis travel (spindle up and down) 1200 mm
Z-axis travel (table back and forth) 1325 mm
B ± 360°
Rapid traverse rate 60.000 mm/min
Positioning accuracy (X,Y,Z)- 0,004 mm
SPINDLE (standard)
Spindle taper hole 7/24 taper No. 50
Number of Index Positions 360,000
Spindle speed maximum 10.000 rpm
Main motor (continuous rating) 30.0 kW
TABLE & PALLET
Pallet 800 x 800 mm
Work piece 1450mm x 1450mm
ATC TOOL MAGAZINE
No. of tool pockets (standard) 80
Weight 29 t
Videos of the machine in running- available upon request.
Listing Details
Type
Machining centers
Producer
MAZAK
Model
NEXUS 8800 II
