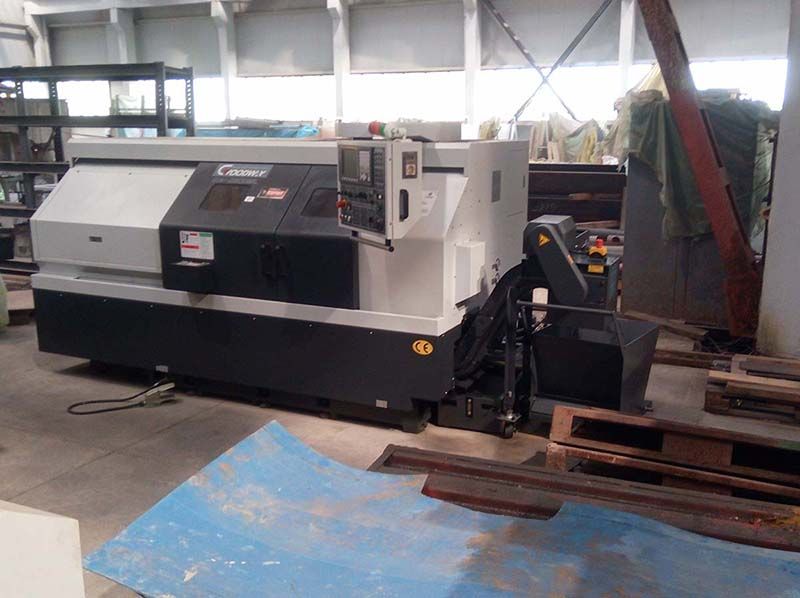

GOODWAY GA-2800 ML Turning center
ML (Milling & Lathe)
YOM 2014
Perfect condition, less than 2000 hours

Heavy duty construction bed & 30-degrees slant wedge saddle

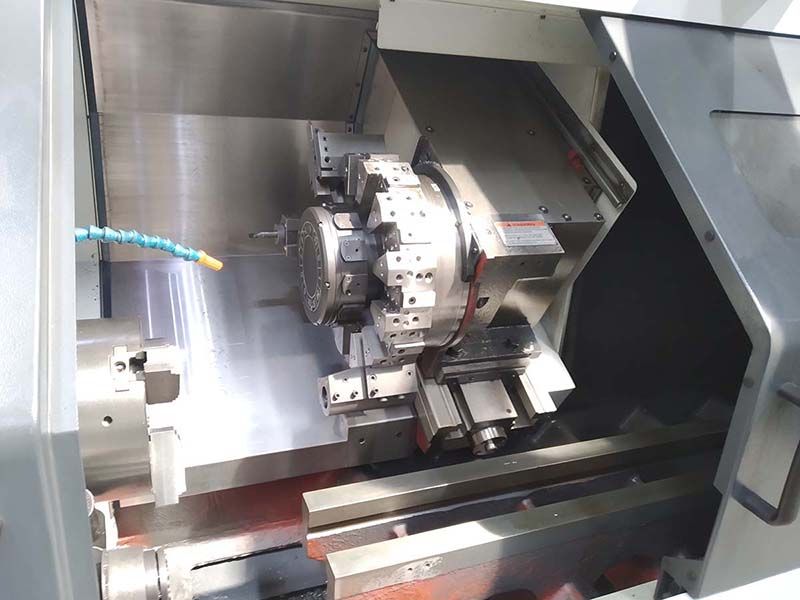

12-stations live tooling turret
X,Z and C- axis
Control FANUC Oi- MD
Max. swing diameter 580 mm
Swing over saddle 400 mm
Max. turning diameter 350 mm
Standard turning diameter 203 mm/ 254 mm
Max. turning length 1200 mm
Max. work piece weight 250 kg (Work piece supported by chuck & tailstock)
Chuck size 254mm / 10"
Bar capacity 75 m
Hole through draw tube 76 mm
Hole through spindle 90 mm
Spindle nose A2-8
Motor output ( Cont. / 30 min. ) 11 / 15 kW
Motor full output speed 750 rpm
Spindle speed range 35 ~ 3.500 rpm
Max. X-axis travel 205 mm
Max. Z-axis travel 1230 mm
X / Z axes rapids 20 m/min., 24 m/min.
Feed rates 1 ~ 4,800 mm/min.
X-axis servo motor AC 1.6 kW
Z-axis servo motor AC 3.0 kW
