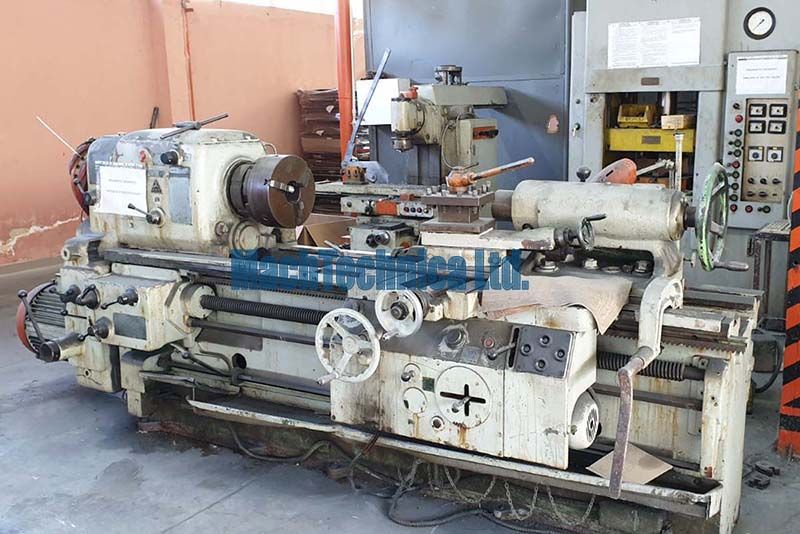

TOS SU 63A / 1250 Lathe
Producer TOS Celakovice
Swing over bed 630 mm
Distance between centers 1250 mm
Swing over cross slide 360 mm
Spindle bore 60 mm
Taper 1:20 M 70
Bed width 567 mm
Chuck 320 mm
Faceplate 650 mm
Spindle speed range- x5, 8-1180 rpm
Number of degrees 5x24
Feeds -number of degrees 41, 0.064 to 6.00 mm / rev
Threads:
48 metric pitch 0.219-48 mm
48 modular module 0.054-12
Diametral Pitch 36 DP 384-1 3/4
36 Circular Pitch 7 / 256-1 1/2
Electric motor:
-speed 1420/710 rev / min
-17/10 kW power
Dimensions 3810x1710 mm
Weight ca. 5000 kg
