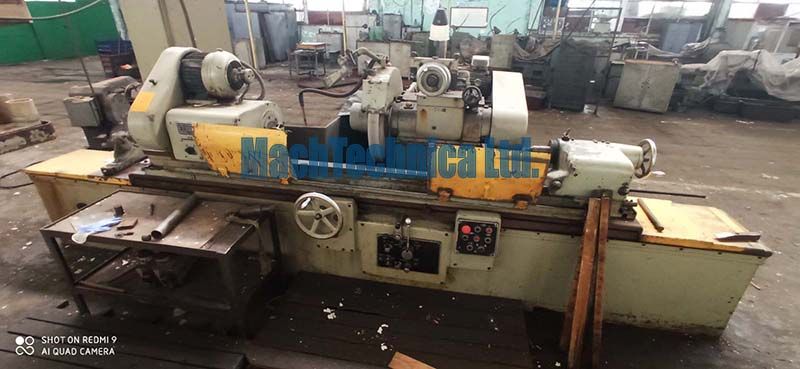

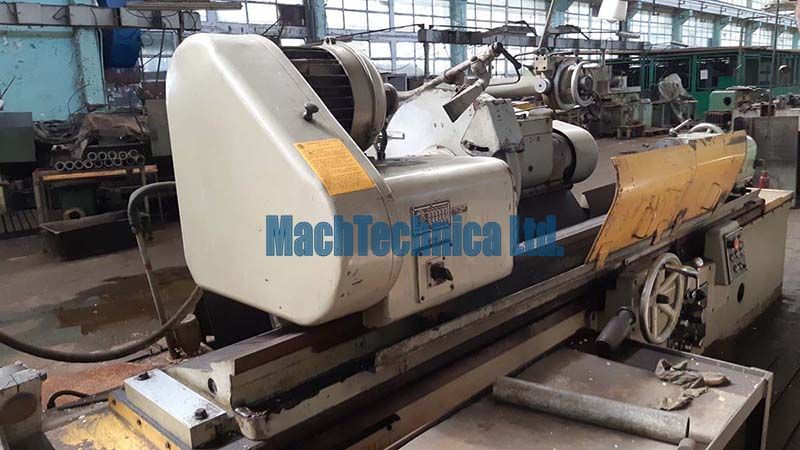

STANKO 3A164 Cylindrical grinder

Semi-automatic machine

Workpiece diameter 40-400 mm

Max. workpiece length 2000 mm

Spindle rotation frequency 16-1460 rpm

Workpiece spindle speed 3-180 rpm

Max. diameter of grinding:

 -In steady rest 120 mm

 -Without steady rest 360 mm

Max. grinding length 1800 mm

Height of centers above the table- 210 mm

Max. work-piece weight- 1000 kg

Grinding wheel dia min/max 500-750 mm

Max. length of table travel- 1800 mm

Spindle taper- Morze 6

Motor power: 13 kW

Periodical feed of grinding headstock:

 -Max.: 0,030±0,0025 mm

 -Min.: 0,0025±0,0006 mm

Max. axial travel of grinding headstock spindle: ±2,5 mm
