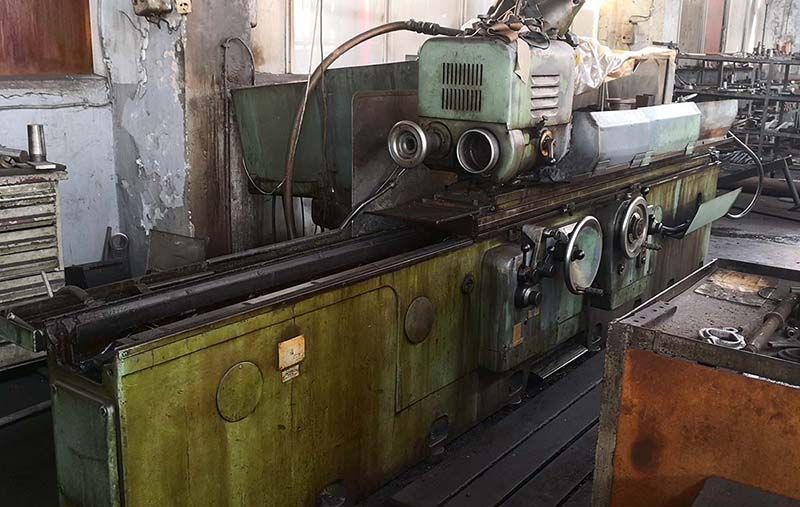

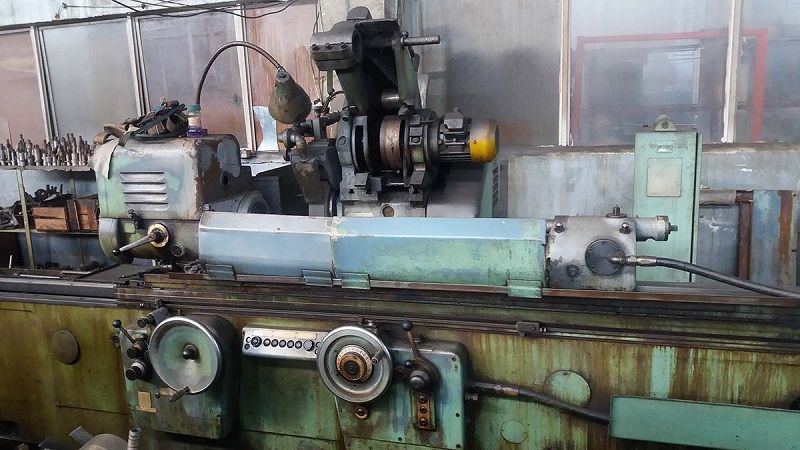

Universal Grinding Machine TITAN RU 350- FORTUNA license
Max. grinding diameter: 350 mm
Max. grinding length: 1500 mm
Max. weight of the workpiece: 500 kg
Workpiece's speed: 12,5 - 250 rpm
Grinding wheel: 525 x 127 x 100
Speed of the grinding wheel: 1200 rpm
Table's speed: 0,05 - 6 m/min
Rapid stroke of the grinding wheel slide: 65 mm
Max. internal griding length: 420 mm
Installed power: 5,5 kW
Net weight of the machine: 5 to
Overall dimensions (L x W x H): 3164 x 2055 x 1990 mm
