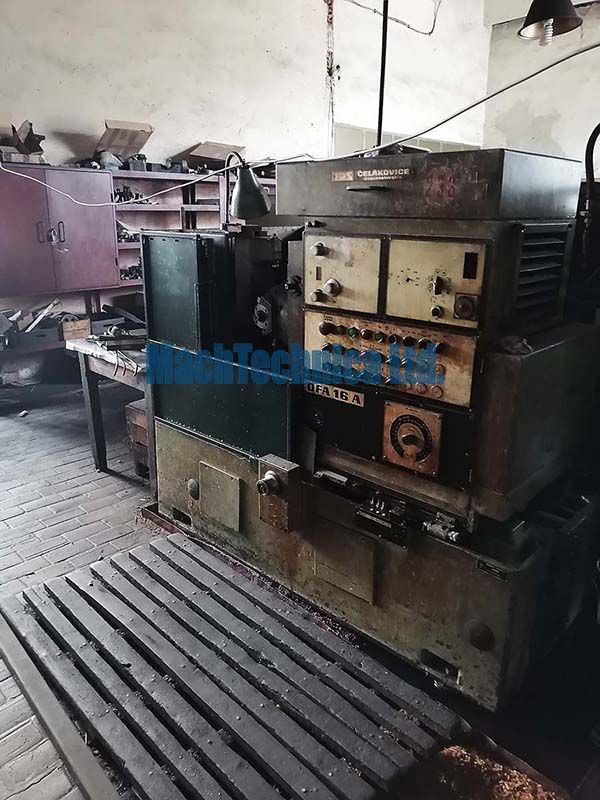

TOS OFA 16 A gear hobbing machine
Producer: TOS Čelákovice
Max module 4
Max diameter of gear 160 mm
Vertical adjustment tool 160 mm
Number of milled teeth 6-160
Distance workpiece and tool 40-205 mm
Clamping table 150 mm
Max dimensions of the cutter (diameter x length) 115 x 140 mm
Averages milling arbors 22 27 32 mm
The diameter mandrel for clamping a workpiece 30 mm
Maximum workpiece weight 50 kg
Milling spindle- Morse 4
The largest axial displacement cutter 120 mm
Tool speed
- 13 degrees in the range of 112-450 / min
Axial movement of the tool
- Continuously from 1 to 220 mm / min
Radial displacement tools
- Continuously 0.5 - 30 mm / min
Axial traverse 560 mm/min
Radial rapid
- The machine in universal design 320 mm/min
- The machine in a dedicated execution 600 mm/min
Main motor of 5.5 kW
Total input 16 kVA
Machine dimension 1990x1640x1665 mm
Machine weight 3650 kg
