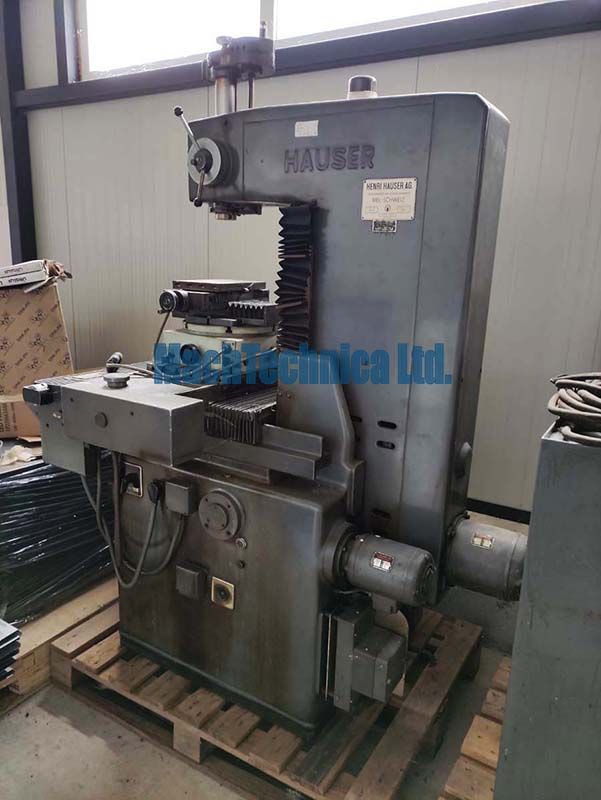

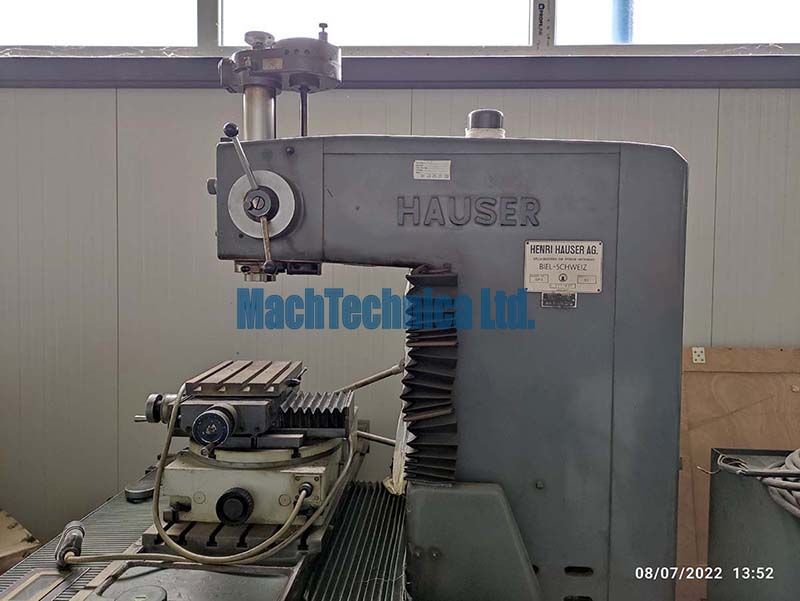

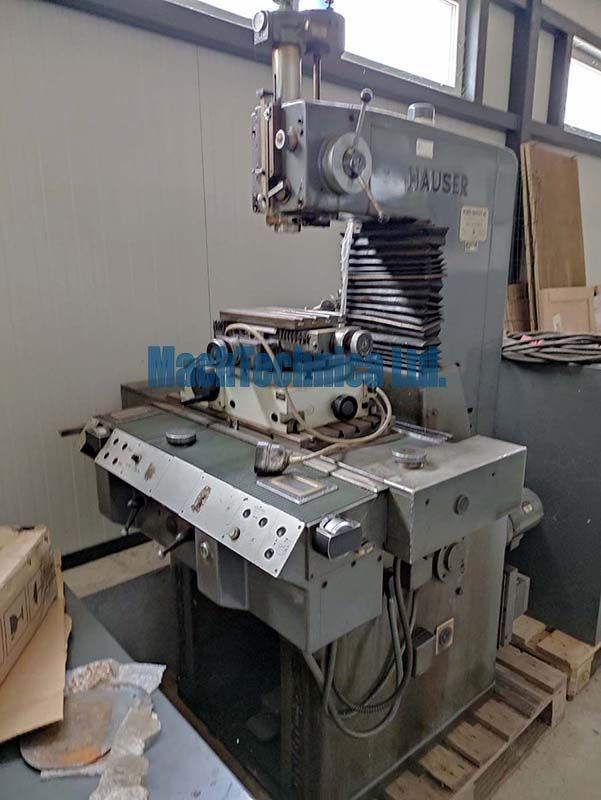

HAUSER OP3 Jig boring machine
Table 550 x 320 mm
Longitudinal travel X-axis 400 mm
Transversal travel Y-axis 250 mm
Vertical travel Z axis 400 mm
Taper in spindle MT 2
Drill capacity in steel 20 mm
Stroke of drilling spindle Z-axis 130 mm
Bore diameter max. 75 mm
Distance table to spindle 600 mm
Spindle speeds: stepless 120- 3000 rpm
Feeds: Drill spindle slide: number (steps) 2, 0.03 mm/r 0.06 mm/r
Spindle motor 0.75 HP
Machine's weight about 1500 kg
Dimensions 1400x1500x2100
