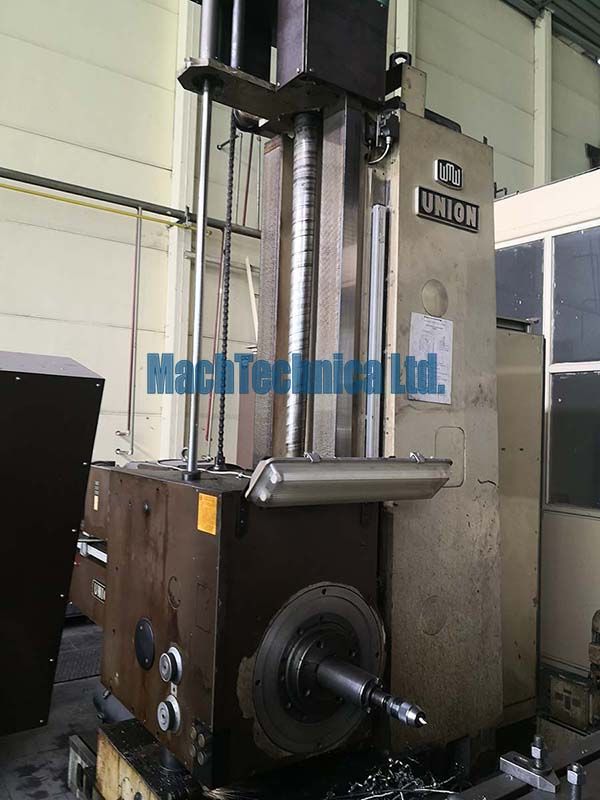

UNION BFT 90/5 CNC Boring mill

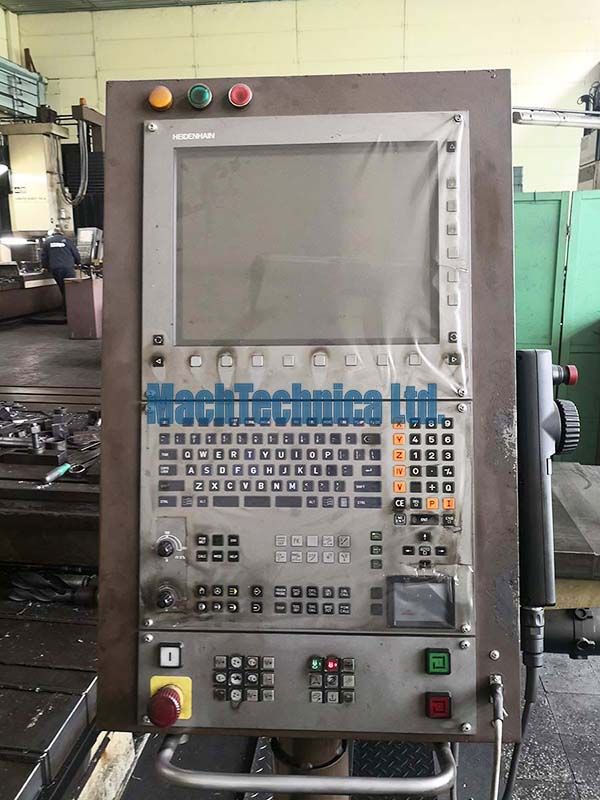

Control Heidenhain TNC 530
X transversal carriage 1600 mm,
Y longitudinal carriage 1475 mm
Z heqadstock 1250 mm
Adjustment of drilling spindle (W) 710 mm
Table rotation(B) 360 °
Table load 3000 kg
Spindle diameter 90 mm
ISO 40
Spindle speeds 4-1600 rpm
Max. Spindle torque 1450 Nm
Spindle drive: 13 kW
Table size 1250x1400 mm
Spindle drive 13 kW
Feedrate X/Y/Z/W 1..3150 mm / min
Infinitely variable B -: 2 rpm
Power consumption 27 kW
Weight 10 t
