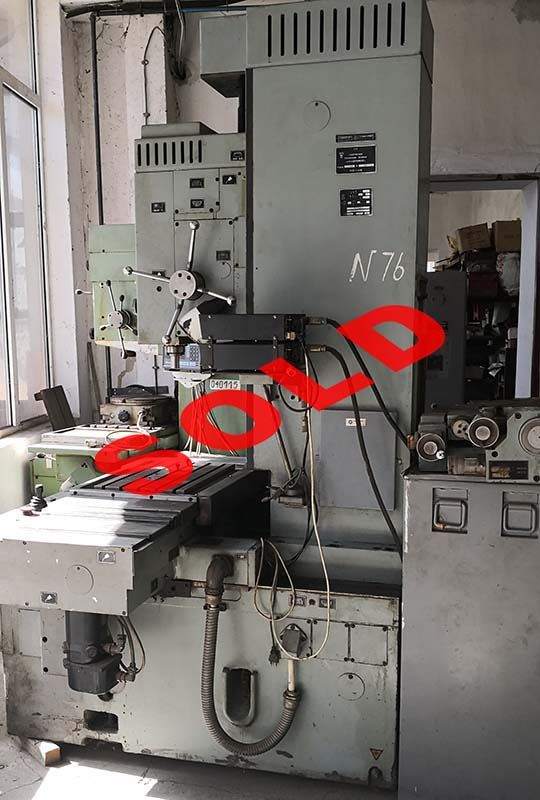

Jig Boring machine STANKO 2431SF10

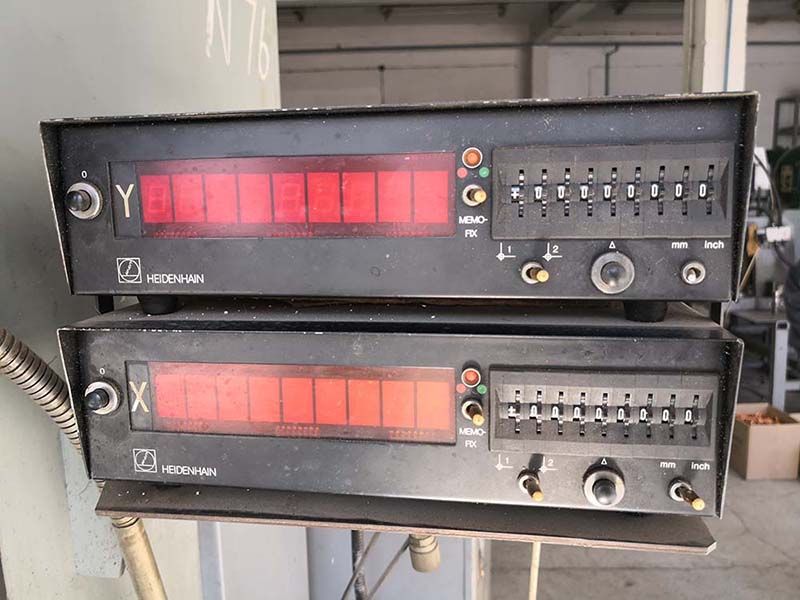

DRO HEIDENHAIN
Table dimensions- working surface 560 x 320 mm
Table load capacity 300 kg
Distance spindle-table 50-575 mm
X/Y - 400/250 mm
Adjusting stroke of spindle head Z axis 400 mm
Working stroke of the sliding spindle sleeve Z axis 125 mm
Feed of the table for one double turn for longitudinal, transverse circular, deg. 1500
Feed X/Y 1500 mm/min
Speed of the installation movement of the spindle head 1200 mm/min
Spindle taper ISO 30
Spindle speed 10-3000 rpm
The largest diameter of drilling / boring 30/220 mm
Main drive power 4 kW
Dimensions of the machine, mm 1900 x 1580 x 2360
Weight 2920 kg
