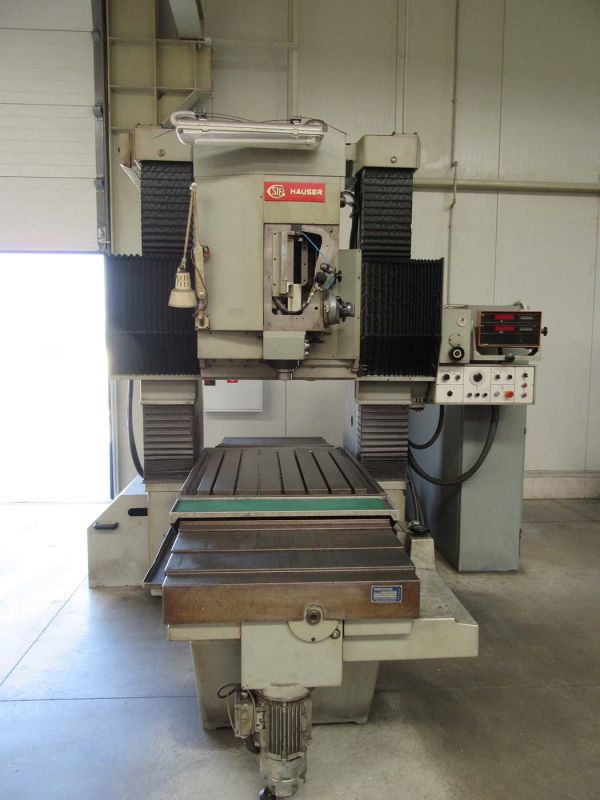

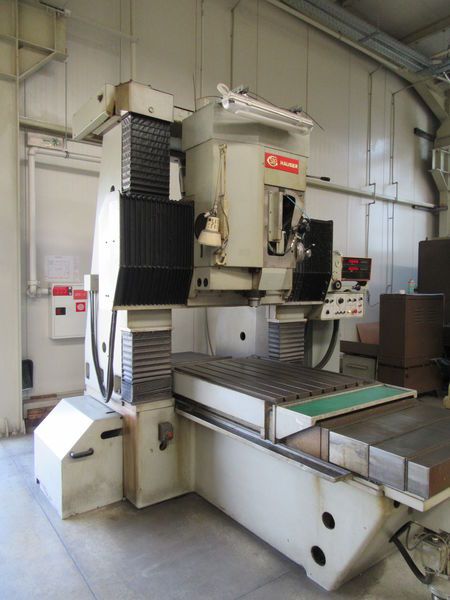

Jig Boring Machine SIP- HAUSER MP-52 DR
YOM 1982
3-axis digital display ELESTA
Spindle diameter 110 mm
Table 1020 x860 mm
Longitudinal travel (X-axis) 900 mm
Transversal travel (y axis) 600 mm
Vertical travel (z axis) 600 mm
Stroke of drilling spindle (Z-axis) 200 mm
Distance table to spindle 15 - 850 mm
Distance between columns 950 mm
Table load max. 800 kg
Spindle speeds: from 10 - 800 rpm up to 800 - 2500 rpm
Feeds: Table from 5 mm/min up to 5000 mm/min
Drill spindle slide: number (steps) 6, from 0.03 mm/r up to 0.33 mm/r
Spindle motor 4.5 kW
Machine's weight about 6500 kg
Dimensions 2930x2370x2690 mm
Equipped with:
-mandrels M2, M3, M4
-boring head
