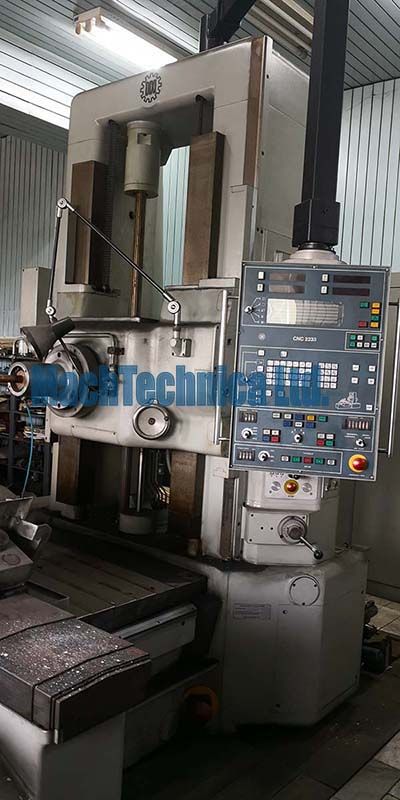

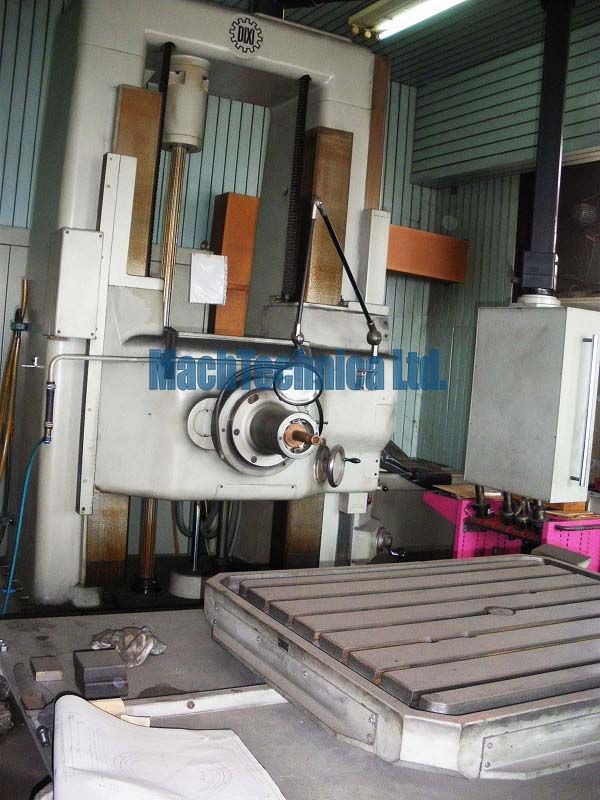

Horizontal Jig Boring Machine DIXI F 330 Y
Control CNC 2233 (4 axis X,Y,Z,B)
YOM 1986, Serial No. 1448
X/Y/Z- 920x870x780 mm
Max. Boring Dia.: 400 mm
Rotary table size 900x1300 mm,
Table rotating 360
ISO 50 spindle taper,
Spindle speeds 8-345 low range, 10-2150 rpm high range,
Feeds 0- 2500mm/min, rapid 6m/min
Total power requirement 14kw
Weight of the machine ca 14t
Coolant, electrics and hydraulic power pack

Accessories- not available.
