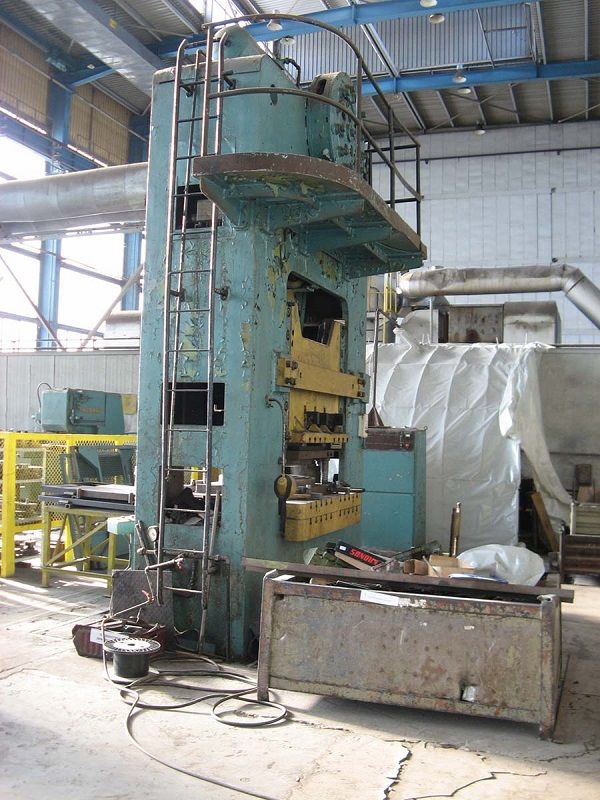

Crank Press ZDAS LUD 500
YOM 1965
Press forces (nominal) 500 to
Hole inside 550 mm
Table 1600 x 1240 mm
Ram 1250 x 1200 mm.
Daylight 400 mm
Ram stroke 250
stroke rate (max.)- 20 s.p.m.
ram adjustment 130 mm
Supply of compressed air- 6 atm
The main electric motor 50 kW
Machine weight ca. : 30 000 kg
Dimensions: WxLxH : 2900 (3390 with the side stair) x 1700 x 4800 mm
Under power
