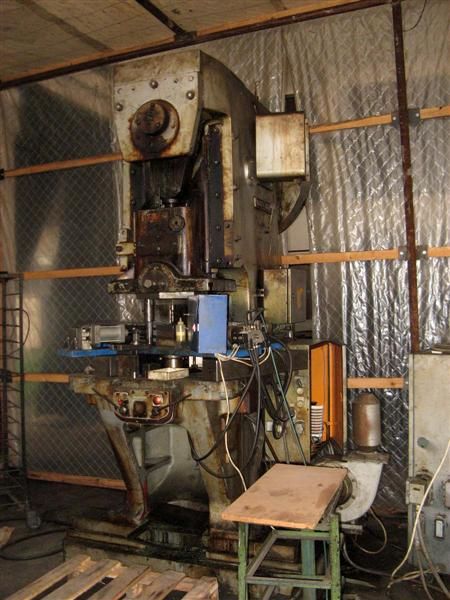

Eccentric single column press WEINGARTEN ARS 63
YOM 1973, Mach.No.121 269 B
pressure 63 t
throat 310 mm
stroke 8 - 100 mm
no. of strokes 56/ 84 /min
distance table/ram, max. stroke up, adjustment up 415 mm
table surface area 870 x 620 mm
hole in the table 250 mm
table height over floor 800 mm
passage to the back 320 mm
ram surface 540 x 360 mm
slide drill hole x depth 50 mm
ram adjustment 63 mm
power requirement 5,5 kW
weight 4,2 t
dimensions 1,1 x 1,9 x 2,65 m
